AI Is Moving Inside Medical Aesthetic Equipment
Medical aesthetics is entering a new era of intelligent equipment. As AI moves closer to the equipment itself, computing capability is becoming a core part of the device — and the choice of a medical aesthetic device motherboard now shapes what the manufacturer's next generation of equipment can do. For energy-based aesthetic devices, on-device computing lets a manufacturer's software run applications such as real-time skin analysis and dynamic energy-calibration guidance closer to the equipment, reducing reliance on cloud connectivity. Some device makers already draw on large historical treatment datasets so their algorithms can help operators select appropriate settings across a wider range of skin tones — from Fitzpatrick type II to type V — on a single applicator, while logging energy and treatment data for later analysis.
The commercial stakes are significant. South Korea's aesthetic devices market is projected to grow from about USD 568 million in 2026 to USD 839 million by 2031, with Seoul alone accounting for roughly 62% of national procedure volume — making its clinics a proving ground for new platforms [1].
For medical equipment manufacturers, adding intelligence is only part of the challenge. The computing platform must also fit the existing equipment architecture, run reliably in a compact system, and stay available for years. For a Korea-based global leader in medical-aesthetic laser devices, the goal was to evolve an established computing platform for the next generation of intelligent equipment — carrying forward a proven design while adding new capability.

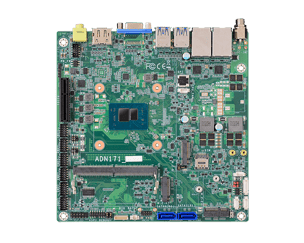

After years of production on the DFI BT101, the manufacturer is transitioning to the DFI ADN171, a Mini-ITX Alder Lake-N motherboard powered by the Intel® Core™ i3-N305 — its next-generation, edge-AI-ready computing platform.
Industry: Medical Aesthetics / Energy-Based Devices
Country: Korea
Application: Medical-Aesthetic Laser System
Solution: ADN171 Mini-ITX Embedded Motherboard
The Challenge: Upgrade Intelligence Without Starting Over
Riding the growth in K-beauty and medical tourism, the brand looked to move its platform forward for the next generation of intelligent equipment. Yet evolving the computing platform inside an aesthetic laser — while keeping the reliability, integration, and long-term stability specialized equipment demands — is not straightforward. Three themes stood out.
1. Providing Compute for On-Device AI
As functions such as skin analysis and energy-calibration guidance become part of next-generation aesthetic equipment, the platform must provide the local compute for the manufacturer's algorithms to run directly at the device. Local inference gives the manufacturer's software the responsiveness real-time operation needs while reducing dependence on the cloud. The challenge was to provide this capability within an established equipment architecture — ideally on a compact, edge-AI-ready board rather than a bulky add-in solution.
2. Evolving a Proven Platform, Not Replacing It
The manufacturer had already deployed the BT101 across its laser platform. As its previous compute generation reached end-of-life, it needed a planned platform transition — an upgrade path that could preserve the foundation of the existing design rather than force a redesign of the mechanics, integration, validation, and certification.
3. Supporting Long-Life, Specialized Equipment
Medical-aesthetic equipment ships for years, so the platform needed to behave like a long-lifecycle motherboard, backed by a long-term supply industrial motherboard commitment — alongside compact fanless operation, customized interfaces, BIOS tuning, and certification support. Its interfaces also had to meet specific standards: audible alarms in energy-based aesthetic devices fall under IEC 60601-1-8, which specifies audible and distinguishable alarm signals. The platform therefore had to provide the audio for functions such as treatment-completion prompts, energy-anomaly alerts, and applicator-detachment warnings in the manufacturer's target markets.
The DFI Approach: One Platform That Carries the Design Forward
DFI provided the ADN171, a Mini-ITX Alder Lake-N motherboard, as the next-generation computing platform for the laser system. DFI worked with the manufacturer to evolve the existing architecture — providing edge-AI compute while preserving the Mini-ITX foundation, customization, and long-term platform stability.
Providing the Compute for Edge AI
As an Intel N305 motherboard built on the Alder Lake-N platform, the ADN171 supports Intel® AVX-VNNI and Intel® DL Boost for accelerated INT8 inference. This gives the manufacturer's software the on-device headroom to run AI workloads such as real-time skin analysis and dynamic energy-calibration guidance — helping operators select appropriate settings across a wider range of skin tones, with processing kept close to the equipment rather than in the cloud. The ADN171 works within the manufacturer's overall system design, providing the intelligence and interface computing while the device's dedicated safety and energy-control functions remain where they belong.
Design Continuity: A Clean Bay Trail Replacement
A key part of the path is the continued use of a compact Mini-ITX foundation. The BT101 and the ADN171 Alder Lake-N motherboard share the same fundamental Mini-ITX approach and comparable I/O, giving the manufacturer a practical Bay Trail replacement that raises computing capability without rebuilding the equipment around a different form factor — turning a platform transition into an evolution of the existing design.
Customized Around the Equipment
For specialized medical equipment, an industrial board often needs adapting to the finished product. DFI integrated the device's audible-alert function directly on-board via the Realtek ALC888S codec (previously a custom audio expansion card on the BT101), re-formed the power connector for cleaner mechanical integration into the chassis, and tuned the BIOS to the customer's system — the kind of adaptation, delivered through DFI's DMS capability, that turns a standard board into a fit-for-purpose medical aesthetic device motherboard.
Long-Term Availability by Design
For equipment that stays in production for years, processor performance is only part of the decision. Engineered as a long lifecycle motherboard for industrial deployment, the ADN171 is designed with disciplined revision control and long-term, predictable supply visibility — a long-term supply industrial motherboard approach, backed by Intel's long-term IoT roadmap, that helps protect an established equipment design from unnecessary redesign and re-validation as computing requirements evolve.
Fanless Reliability, Displays, Connectivity, and Room to Grow

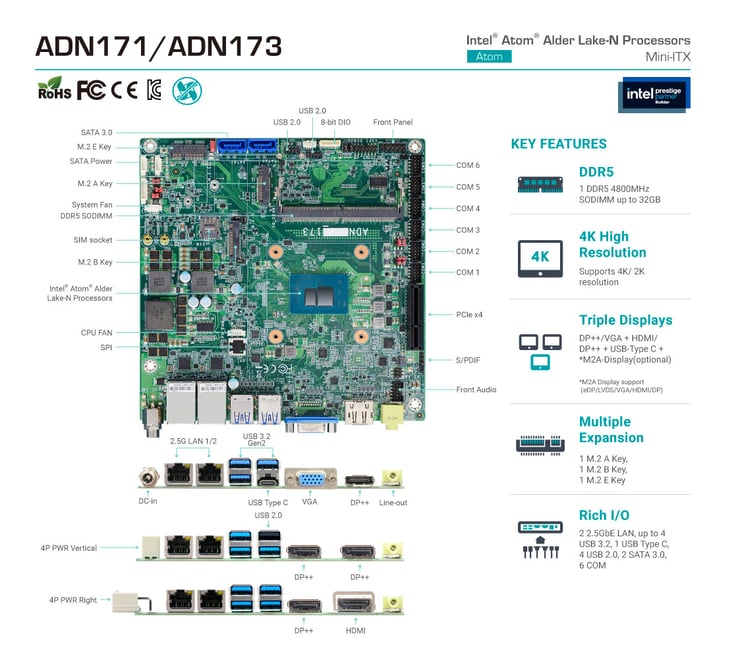

The ADN171 pairs a fanless thermal design — the quiet, dust-tolerant operation expected of a fanless Mini-ITX motherboard — with triple independent display support up to 4K (via M.2 A-Key + eDP/LVDS module for an embedded touch panel), DDR5 memory, and dual 2.5GbE for logging treatment data and separating clinical and service networks. M.2 B-Key and E-Key slots leave room for future imaging or AI-acceleration modules without redesigning the board. As a standard Mini-ITX platform, it also gives the manufacturer design freedom and a broad component ecosystem.
Engineering Support From Integration to Certification
Integrating an industrial board into specialized medical equipment takes more than the right hardware. DFI's field application engineers worked alongside the manufacturer to address EMC issues and support the KC certification process, helping reduce engineering risk during integration and supporting the path to launch.

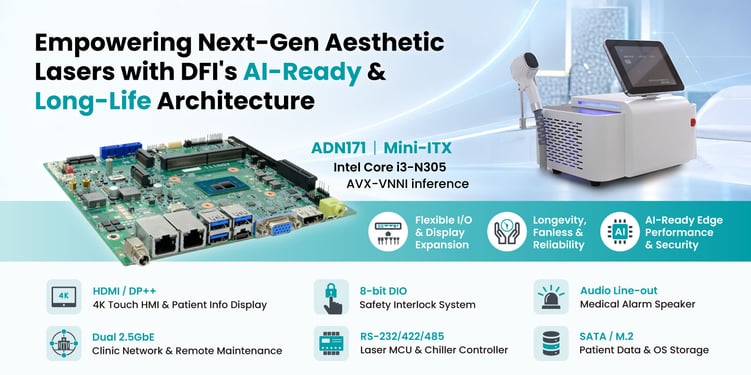

How the ADN171 Fits Into Intelligent Laser Operation
Within the system, the ADN171 brings together sensing inputs, on-device computing, and the operator interface, working alongside the device's control and safety functions:
• Sensing input: skin-imaging and feedback sensors provide data over USB and M.2 expansion; digital signals are handled through the on-board 8-bit DIO.
• Edge AI processing: the Intel® Core™ i3-N305 gives the manufacturer's software the compute for on-device inference, supporting real-time skin analysis and energy-calibration guidance.
• System coordination: the ADN171's rich serial I/O (6 × COM) lets it exchange commands and status with the device's control and safety functions.
• Operator interface: an embedded touch panel plus audio (Realtek ALC888S) for prompts and alarms.
From BT101 to ADN171: The Upgrade Path at a Glance
With a planned generational transition, DFI lets the manufacturer add new capability while keeping the foundations of an established product design — minimizing the cost and delay of redesign and re-validation.
| |
BT101 — Proven Platform
|
ADN171 — Next-Gen Platform
|
|
Product
|
|
|
|
Specifications
|
|
|
|
Processor
|
Intel® Celeron® J1900
(Bay Trail)
|
Intel® Core™ i3-N305
(Alder Lake-N)
|
|
AI Compute
|
CPU-based control
|
AVX-VNNI / Intel® DL Boost for on-device INT8 inference
|
|
Display
|
Basic control display
1 DVI-I, 1 LVDS
|
Triple independent displays,
up to 4K
DP++/VGA + HDMI/DP++ + USB-Type C + *M2A-Display (optional)
|
|
Audio
|
Custom audio expansion card
|
On-board (Realtek ALC888S; Line-out / Mic-in / S/PDIF)
|
|
Form Factor
|
Mini-ITX
|
Mini-ITX
|
|
Long-term industrial product longevity
|
Built on Trust, Evolving Together: Your Partner for Every Generation
The partnership has spanned years: the brand has standardized exclusively on DFI motherboards as the computing platform for its laser systems, with stable production volumes of several thousand units per year — making DFI a long-standing, high-volume platform choice across the customer's product line.
For the customer, the value is commercial: carrying forward a proven design keeps re-validation and device-level certification costs and timelines manageable, allowing engineering to focus on clinical features rather than rebuilding the platform. Long-term, predictable supply protects the established design from platform disruption, while the upgrade increases computing headroom with minimal risk, enabling higher-end, AI-capable aesthetic systems. Together, these advantages make DFI’s platform a trusted choice across the customer’s product line at scale.
The challenge, though, reaches well beyond aesthetic lasers: equipment makers across medical and specialized industries all need to balance long-term product stability with fast-evolving computing needs. Pairing ready-to-deploy COTS industrial platforms with decades of Design & Manufacturing Services (DMS) expertise, DFI helps manufacturers — whether they start from a proven standard platform, an edge-AI-ready upgrade, or application-specific customization — build a computing architecture that evolves with the equipment. Proven once, ready for what's next.
